How to check the quality of wheel hub forging

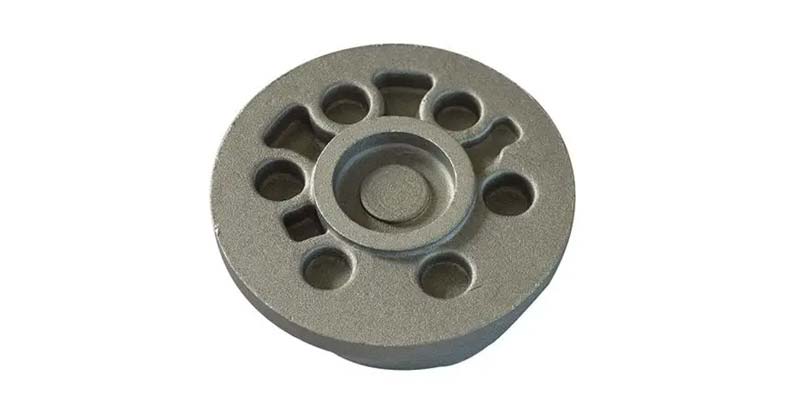

Hub forging is the key component of automobile tire, its quality directly affects the performance and safety of automobile. Therefore, detecting the quality of wheel hub forgings is very important. This paper will introduce several commonly used quality inspection methods for wheel hub forgings.

1. Appearance detection

Appearance inspection is the most basic inspection method, by observing the appearance of wheel hub forgings to judge its quality. Under normal circumstances, the surface of qualified wheel hub forgings should be smooth, without obvious scratches, dents, pores and impurities and other defects. In addition, it is also necessary to check whether the size and shape of the wheel hub forging meet the design requirements.

Second, non-destructive testing

Non-destructive testing is a method to detect wheel hub forgings by physical or chemical methods without destroying the wheel hub forgings. Common nondestructive testing methods include ultrasonic testing, X-ray testing, magnetic particle testing, eddy current testing and so on. These methods can detect defects and cracks inside the hub forgings, as well as defects under the surface.

Third, mechanical properties testing

Mechanical properties testing is to test the mechanical properties of wheel hub forgings through experiments, such as hardness, tensile strength, impact toughness and so on. These indicators are directly related to the service life and safety of wheel hub forgings. Therefore, mechanical property testing is an important part of wheel hub forging quality testing.

4. Metallographic detection

Metallographic inspection is a method to judge the quality of wheel hub forgings by observing their microstructure. By grinding and polishing the wheel hub forgings, the microscopic characteristics such as grain size, shape and distribution can be observed. These characteristics can reflect the manufacturing process and material properties of wheel hub forgings, so the quality of wheel hub forgings can be judged by metallographic detection.

In short, the quality inspection of wheel hub forgings needs to adopt a variety of methods for comprehensive evaluation. Appearance testing can initially determine the surface quality of hub forgings, non-destructive testing can detect internal defects and cracks, mechanical performance testing can evaluate the performance of hub forgings, metallography testing can observe the micro-structure of hub forgings. Through these methods, the quality of wheel hub forgings can be comprehensively evaluated to ensure that it meets the design requirements and performance.
