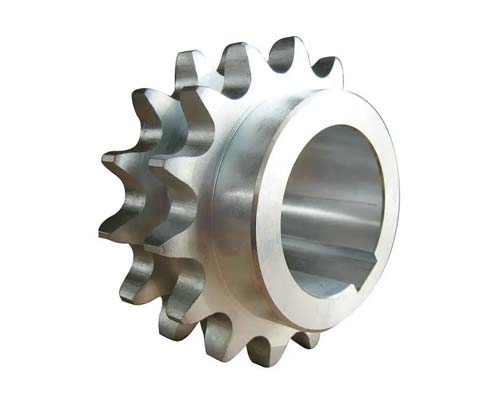

How to accurately control the size and shape of sprocket forgings?

The size and shape of sprocket forgings are important factors to ensure the stability and accuracy of the transmission system.

1. Precise control of sprocket forging size

Mold design: Mold design is the key link to control the size of sprocket forgings. In the design process, it is necessary to determine the shape and size of the mold according to the specifications and requirements of the sprocket, and consider how to optimize the mold structure and improve production efficiency.

Forging equipment: Forging equipment is also essential for controlling the size of sprocket forgings. Choose advanced forging equipment, such as CNC hydraulic press, mechanical press, etc., can provide higher accuracy and controllability.

Blank preparation: The size and quality of the blank also have an impact on the size control of the sprocket forgings. Therefore, it is necessary to select the appropriate blank material, and carry out effective heat treatment and surface treatment to ensure that the size and quality of the blank meet the requirements.

Machining accuracy: Machining accuracy is an important link to control the size of sprocket forgings. In the processing process, it is necessary to use high-precision processing equipment and technology, such as CNC machine tools, grinding, etc., to ensure that the dimensional accuracy and form and position tolerance of each part meet the requirements.

2. Precise control of sprocket forging shape

Mold design: In the process of mold design, it is necessary to consider the shape and structural characteristics of the sprocket forgings, and rationally arrange the structure of the mold, the size of the gap and the location of the vent hole, etc., to ensure the stability and controllability of the metal flow during the forging process.

Forging process: The choice and control of forging process is crucial to the shape accuracy of sprocket forgings. The use of reasonable heating temperature, forging pressure and deformation system and other process parameters can ensure the flow and deformation of the metal uniform, to prevent excessive deformation and residual stress.

Cooling treatment: Cooling treatment also has an impact on the shape accuracy of sprocket forgings. With the appropriate cooling method and speed, the phase transition process and volume change of the metal can be controlled to avoid deformation and cracking.

Heat treatment process: Heat treatment process also has an impact on the shape accuracy of sprocket forgings. The mechanical properties and microstructure of materials can be adjusted by using reasonable heat treatment scheme, and the strength, toughness and corrosion resistance of sprocket forgings can be improved.

To sum up, the precise control of the size and shape of sprocket forgings needs to be comprehensively considered from many aspects such as mold design, forging equipment, blank preparation and processing accuracy. By optimizing mold design, selecting advanced forging equipment, controlling blank quality and adopting high-precision processing technology, the size and shape accuracy of sprocket forgings can be effectively improved, and the stability and accuracy of transmission system can be ensured.
