What is construction machinery cone sleeve?

Cone sleeve of construction machinery is a common part of construction machinery, which is widely used in construction machinery equipment. This paper will introduce the definition, function, classification and application field of construction machinery cone sleeve in detail.

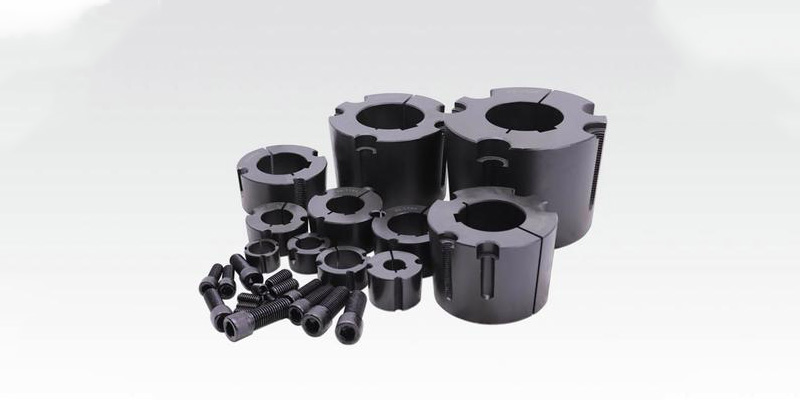

Construction machinery cone sleeve refers to a cylindrical casing, its inner hole is a conical structure, can be used with conical parts. It is usually made of high-quality alloy steel materials with high strength and wear resistance. By matching with conical parts, the construction machinery cone sleeve realizes the transfer of force and the connection of working parts, and plays the role of support and fixing.

Feature

1. Connection and fixing function: construction machinery cone sleeve can fasten the parts together through a conical fit, with good bearing capacity. It can realize the reliable connection and fixing of the connected parts by adjusting the installation position and matching gap of the cone sleeve, and ensure the normal operation of the construction machinery equipment.
2. Transfer force function: Construction machinery cone sleeve can effectively transfer the force generated by mechanical equipment to the connecting parts, such as drive shaft, gear, etc. Through the coordination between the cone sleeve and the cone part, the power and force can be transferred to ensure the normal operation of the mechanical equipment.
3. Adjustment and calibration function: Construction machinery cone sleeve can be used to adjust the gap between parts to achieve accurate assembly and calibration. By adjusting the position of the cone sleeve, the installation direction and the gap size, the relative position and movement trajectory of the connected parts can be precisely in place to ensure the working accuracy and stability of the equipment.

Sort
According to the use of the environment and specific functions, construction machinery cone sleeve can be divided into the following types:

1. Tight cone sleeve: tight cone sleeve is usually used by pressing nuts or dowel, etc., to fix the cone sleeve and cone parts together. This type of cone sleeve is suitable for applications requiring large load capacity and connection fastening requirements, such as drive shaft, reducer, etc.
2. Self-locking cone sleeve: The self-locking cone sleeve adopts a special locking structure, and the cone sleeve and cone parts can be firmly connected without external fixings. This type of cone sleeve is suitable for construction machinery equipment with large vibration and impact, such as vibrating screen and road roller.
3. Adjustable cone sleeve: The adjustable cone sleeve can achieve accurate adjustment of the connection gap by adjusting the nut or sliding kit. This type of cone sleeve is suitable for applications requiring accurate assembly and calibration, such as machine tools, molds, etc.

Application field
Construction machinery cone sleeve is widely used in various fields of construction machinery equipment, including but not limited to the following aspects:

1. Transmission system: In the transmission system, the cone sleeve can be used to connect the shaft, gear, coupling and other parts to achieve the effective transmission and conversion of transmission force.
2. Buttons and handles: In the control system, the cone sleeve can be used to connect buttons, handles and other operating parts to achieve the control and operation of mechanical equipment.
3. Fixed parts: In the mechanical structure, the cone sleeve can be used to fix the base, bracket and other structural parts, providing stable support and fixing functions.

In summary, construction machinery cone sleeve as an important connection parts, plays an important role in construction machinery equipment. It ensures the normal operation and working accuracy of construction machinery and equipment by connecting and fixing, transferring force and adjusting and calibration. Different types of cone sleeves can be selected and applied according to specific requirements, which promotes the development and progress of the construction machinery industry.
