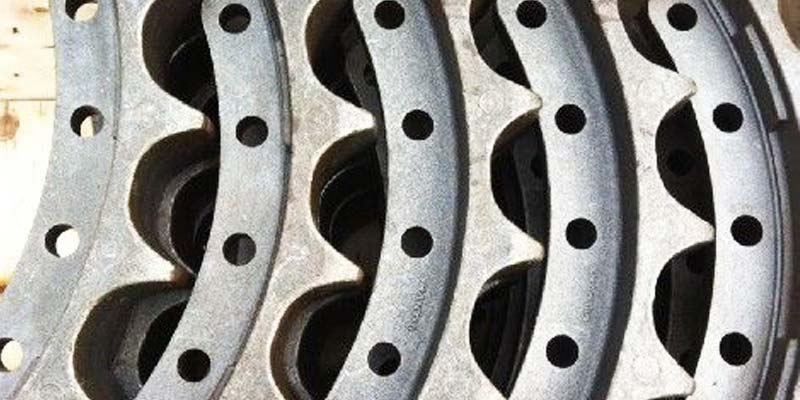

What is construction machinery tooth block?

Construction machinery tooth block is an important part used in construction machinery equipment, it plays the role of transmitting force, driving movement and protecting equipment. This paper will introduce the definition, function, classification and application field of construction machinery tooth block in detail.

Definition
The tooth block of construction machinery refers to the gear fixed on the transmission device of construction machinery, which is used to transfer and adjust the force and speed in the transmission system. It is made of high-strength alloy steel material with excellent hardness, wear resistance and strength, and can withstand high-intensity working environments and heavy load conditions.

Function

1. Transfer force: The construction machinery tooth block transmits the power of the input shaft to the output shaft by meshing with other gears, so as to achieve the movement and work of the mechanical equipment.
2. Transmission movement: different sizes and number of teeth can achieve different transmission ratios, adjust the speed and torque of construction machinery and equipment to meet the needs of different working conditions.
3. Protection equipment: The structural design and material selection of the tooth block can effectively buffer and disperse the shock and vibration during the transmission process, extend the service life of the mechanical equipment, and reduce the maintenance and replacement frequency of the equipment.

Classification
According to the use position and function, the construction machinery tooth block can be divided into two categories: active tooth block and driven tooth block:

1. Drive gear blocks: They are located at the input end of the transmission system, usually referred to as drive gear blocks or transmission gear blocks, and are responsible for transferring power from the power plant to other parts of the transmission system.
2. Driven gear block: They are located at the output end of the transmission system, usually known as the driven gear block, accept the power transmitted by the active gear block, and play a role in the transmission and output of mechanical equipment.
3. Application field
   Construction machinery teeth are widely used in various fields of construction machinery equipment, including but not limited to the following aspects:
4. Construction engineering: In excavators, bulldozers, loaders and other construction machinery, teeth are widely used in the transmission system of the differential, walking device, hydraulic oil pump and other parts.
5. Mining industry: mine lifting equipment, mining vehicles, etc., need teeth to transmit power and complete the corresponding task.
6. Agricultural machinery: agricultural tractors, harvesters and other agricultural machinery and equipment, teeth play an important role in the transmission device and conveying system.
7. Port loading and unloading: The transmission teeth of port excavators, loading and unloading trucks and other equipment can meet the transportation and loading and unloading needs of large-capacity goods.

In summary, construction machinery tooth block is a key transmission parts, through the transmission of force, transmission movement and protection equipment and other functions, plays an important role in construction machinery equipment. Its excellent performance and reliability ensure the normal operation and long-term stability of the equipment. Different types and sizes of tooth blocks are widely used in various fields, promoting the development and progress of the construction machinery industry.
