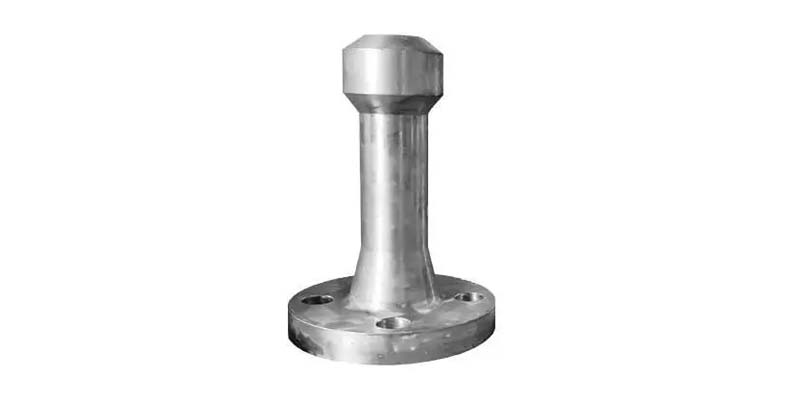

Guide to installation, maintenance and maintenance of flange forgings

Here are some steps on flange forgings installation, maintenance and maintenance:
Installation: Before installing flange forgings, ensure that the working area is clean, dry and bright, and ensure that there is no source of fire. Check the surface of the flange to ensure it is clean and removed of any impurities. Make sure the bolts, washers and other fittings used fit according to the design and specifications of the flange. Before assembling the flange, the tube end should be inserted into 2/3 of the thickness of the inner diameter of the flange, and then the flange and the pipe should be spot-welded. If it is a horizontal pipe, it should be spot-welded from the top first, and then use a 90° Angle square to check and correct the flange position from different directions, so that its sealing surface is perpendicular to the center line of the pipe, and then spot-welded the second point below. Check and correct the flange position from the left and right directions with a 90 degree Angle, and then spot weld the third and fourth points after passing, so as to complete the spot welding and fixing of the flange. For the assembly of paired flanges, the bolt holes of the later installed flanges should be aligned with the corresponding bolt holes of the fixed flanges, and should be parallel to the fixed flanges, with the deviation not greater than 1.5‰ of the outer diameter of the flange, and not greater than 2mm.

Maintenance: During maintenance, ensure that the flange contact surface is always clean. Check the condition of bolts and gaskets regularly to ensure that they are intact and not worn. If any damaged or worn parts are found, they should be replaced promptly.
Maintenance: During maintenance, the flange should be lubricated regularly to prevent it from rusting or sticking. Check the bolts and nuts of the flange to make sure they are tight and not loose. If any loose or damaged parts are found, they should be tightened or replaced promptly.
The above is about the flange forging installation, maintenance and maintenance guide, I hope to help you.
